Coil Stretching Machine

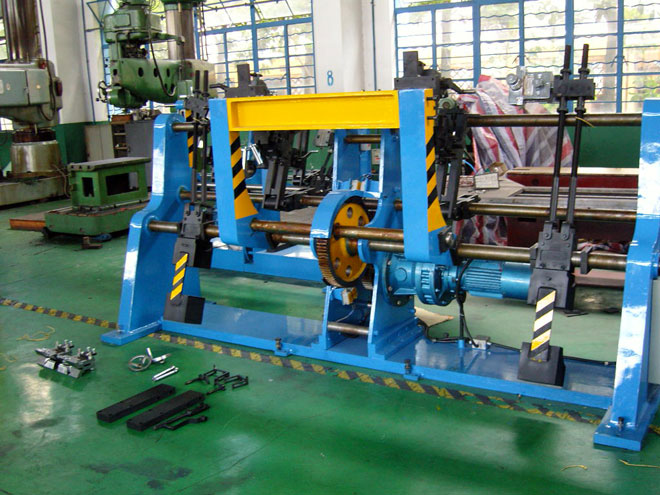

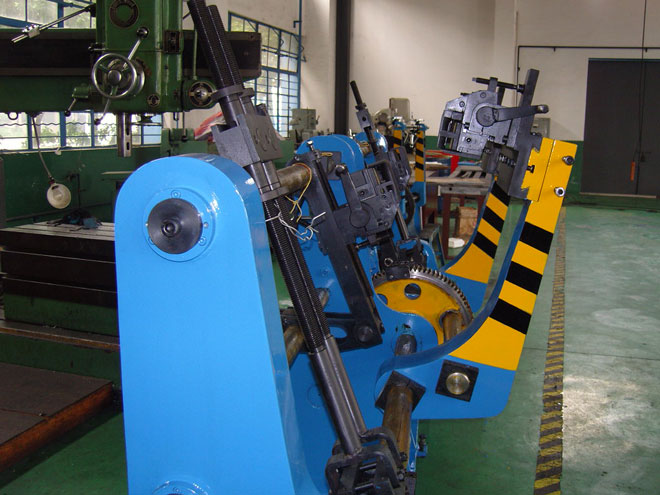

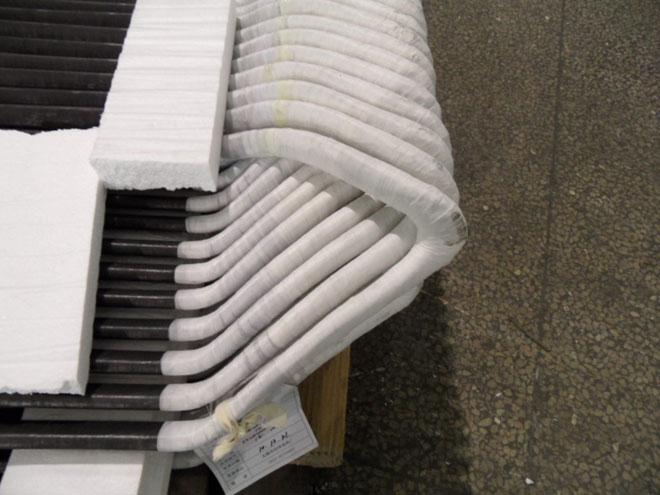

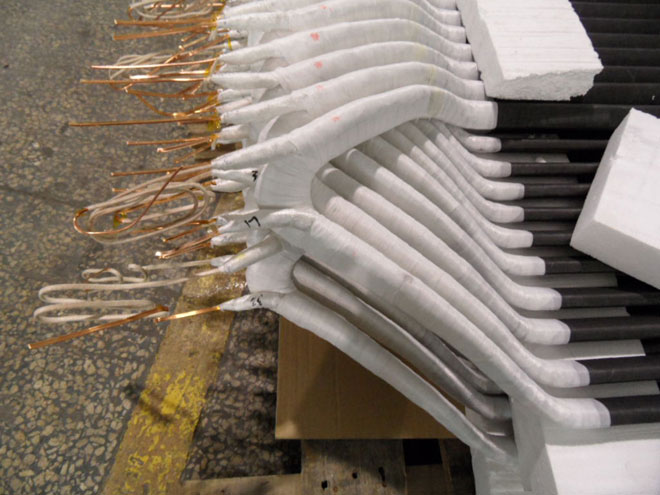

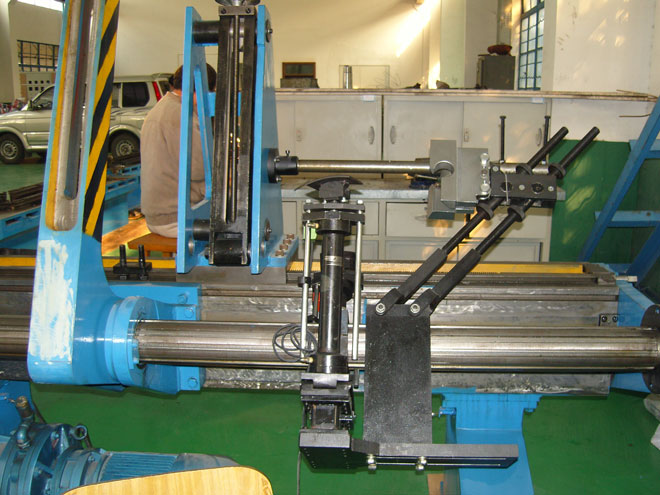

ZCN02-1200 Semiautomatic Framework Coil Universal Electric Stretching Machine

Technical specifications:

1.       Coil sectional area: 6-21X10-42mm² (adjustable), eccentric clamping;

2.       Maximum length of straight line section of coil 1200mm, minimum length 270mm;

3.       Disc (rhombus shaping) length 1700mm, with linked board, disc length can be 400mm longer;

4.       Diameter of coils to be inserted into slots is infinitive;

5.       Stretching pitch 850mm, and stretching angle 155º;

6.       Power 2.2kW, cycloid slowdown, gear transmission, manual shaping on machine, small batch production is available without reshaping mould;

7.       Nose part hoist by self-motion 0~250, by manual forming arc;

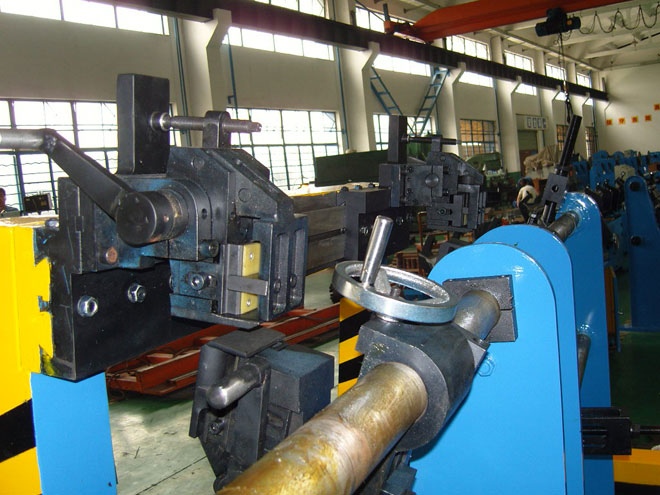

ZCN02-1600 Semiautomatic Framework Coil Universal Electric Stretching Machine

Technical specifications:

1.       Coil sectional area: 6-21X10-42mm² (adjustable), eccentric clamping;

2.       Maximum length of straight line section of coil 1600mm, minimum length 350mm;

3.       Disc (rhombus shaping) length 2100mm, with linked board, rhombus shaping length can be 400mm longer;

4.       Diameter of coils to be inserted into slots is infinitive;

5.       Stretching pitch 1050mm, and stretching angle 155º;

6.       Power 3.0kW, cycloid slowdown, gear transmission, manual shaping on machine without complex mould, more batch production is available with a complex mould to improve productivity;

7.       Nose part hoist by self-motion 0~250, by manual forming arc;

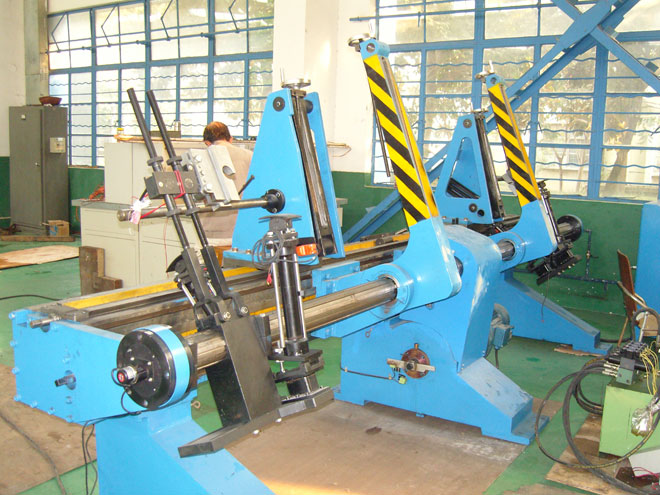

ZCN02A-1600 Heavy Semiautomatic Big Framework Coil Stretching Machine

Technical specifications:

1.       Coil sectional area: 7-25X15-65mm² (stepless adjustment), eccentric clamping;

2.       Maximum length of straight line section of coil 1600mm, minimum length 350mm;

3.       Disc (rhombus shaping) length 2100mm, with linked board, rhombus shaping length can be 400mm longer;

4.       Stretching pitch 1050mm, and stretching angle 155º (stretching machine can be stretched 125º, the stretching clip can be adjustable 30º, vernier adjustment 20º;

5.       Diameter of coils to be inserted into slots is infinitive;

6.       Nose part hoist by self-motion 0~300mm, by manual forming arc;

7.       Power 3.0kW, cycloid slowdown, gear transmission;

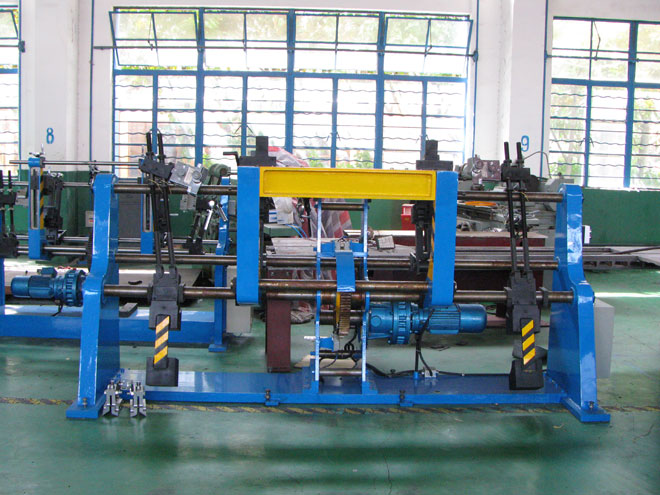

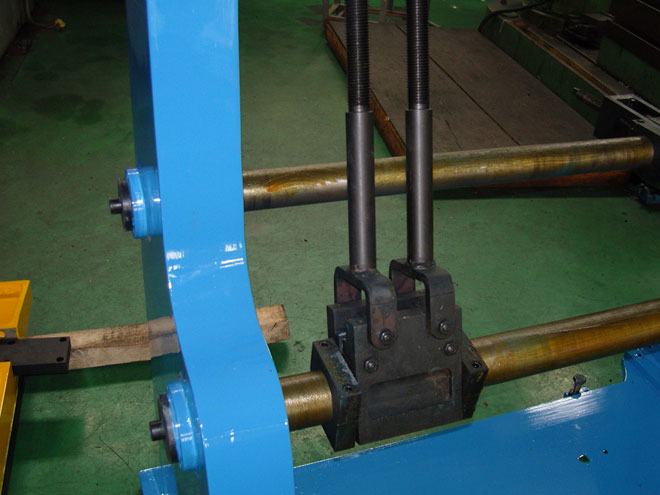

ZCN02AA-2200 Adjustable Semiautomatic Framework Coil Stretching Machine

Technical specifications:

1.       Coil sectional area: 8-25X15-65mm² (stepless adjustment), eccentric clamping;

2.       Maximum length of straight line section of coil 2200mm, minimum length 700mm,  Assembled length range 700~1100mm, 1100~1700mm and 1600~2200mm. stepless adjustment (there are 700mm and 1600mm dynamic arm horizontal girders, and there are 550X2 and 350X2 carriages, through different assembly);

3.       Disc (rhombus shaping) length 3000mm;

4.       Stretching pitch 1150mm, and stretching angle 160º (stretching machine can be stretched 125º, the stretching clip can be adjustable 30º, vernier adjustment 15º;

5.       Diameter of coils to be inserted into slots is infinitive;

6.       Nose part hoist by self-motion 0~300mm, by manual forming arc, configuration with Φ30、Φ50 stretching nose clip, the width of nose clip 200mm, including full nose clip and half nose clip, both can stretch the coil for shaping;

7.       Power 3.0kW, cycloid slowdown, gear transmission, cross arm can be adjustable;

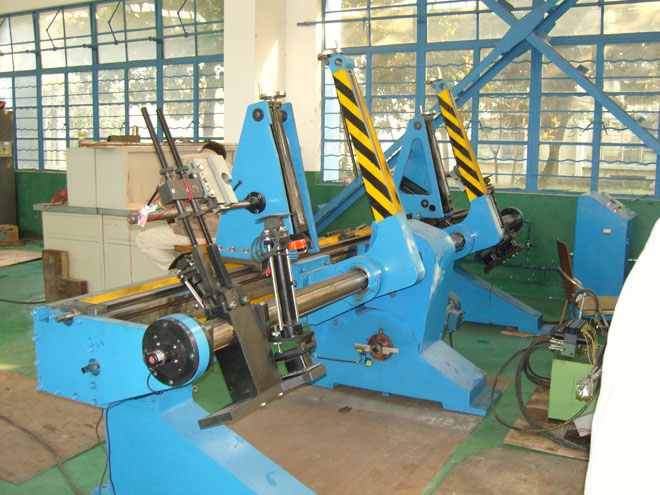

ZCN02AT-3000 Semiautomatic Big Framework Coil Knockout Arc Stretching Machine

Technical specifications:

1.       The stretching machine is electric stretching, eccentric clamping;

2.       Maximum length of rhombus shaping of coil is 4600mm, the maximum length of straight line part of coil is 3000 ~ 3500mm, minimum 700mm. Measuring the length by ruler, electric adjustment. End part hoist with a maximum height of 375mm, by manual forming arc;

3.       The maximum centre angle of coil 160º (stretching machine 125º, stretching clip 20º, fixed clip in a vernier adjustment 15º. Maximum pitch 1150mm, numerical control for pitch adjustment, stepless adjustment, power 4.0kW, cycloid slowdown;

4.       Coil sectional area: 8-25X15-65mm² (width/height);

5.       Configuration with Φ30、Φ50 stretching nose clip, the width of nose clip 200mm, including full nose clip and half nose clip, both can stretch the coil for shaping;

6.       Diameter of coils to be inserted into slots is infinitive;

7.       The length of straight line section of the upper layer of stator coil is longer than that of lower layer, normally 10mm longer (each edge 5mm), or 40mm longer (each edge 20mm). The length of straight line section of upper/or lower layer sectionn of coil, respectively adjusted;

Considering the protection of our technical secrets, the technical drawings and parameters of the product are not issued on website, if you need to inquire more informations of this product, it is very precious of you to send e-mails to xxe@vip.163.com or leave your questions on our message board in "Contact Us".
